Debugger in ODI 12c

 Let me take a scenario:

I have implemented SCD 3 type in ODI 12c using Customized knowledge Module. Before using it I want to check it out whether is working as per requirement or not.

Source Data:

Target Data (After full load):

After update employee_id : 100 salary to 3500 Source Data:

Final Output:

Debugging Steps:

1. Go to Mapping
2. Open it
3. Click on Debugger on top (which appears as mentioned below)

     4. Select debugging properties as mentioned below



       Select the context and Agent as per your mapping data load. Suspend Before First Task which will suspend immediate after the first task.

        Click Ok.

5. Debugging Mode display as mentioned below

6. Right click on step 50 and select the add break point

7. Click on Current Cursor as mentioned below

8. Then click on Resume button as mentioned below

9. Then right click on Step 50 and say get Data

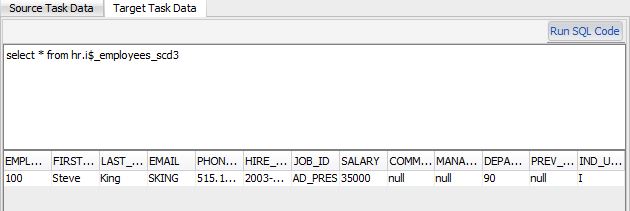

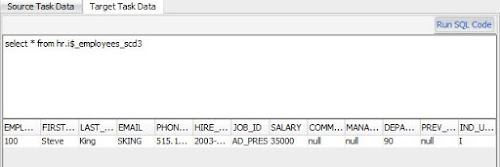

10. Click on the Run Task End and right click on step 50 and say get Data

You can observe the staging table data immediately after that step.

11. Right click on Step 140 and add debugger and check whether that record is loading to target or not.

by following step 7, 8 and Step 10. Now check the data from ODI. as mentioned above .

Run from DB it is still not committed so u can't see that updated value yet.

Now I felt it good to go so I will edit break point by right click at step 140 and enable Suspend after executing the task as below:

Now click on Resume it.

Hence completed!!.. Now you can see the data reflected from DB also.

Tip 4: Physical Mapping Design cannot be modified even if the Logical Design of the Mapping is changed

Q: You want to ensure that the Physical Mapping Design cannot be modified even if the Logical Design of the Mapping is changed. What sequence of steps must you follow to achieve this

Ans:

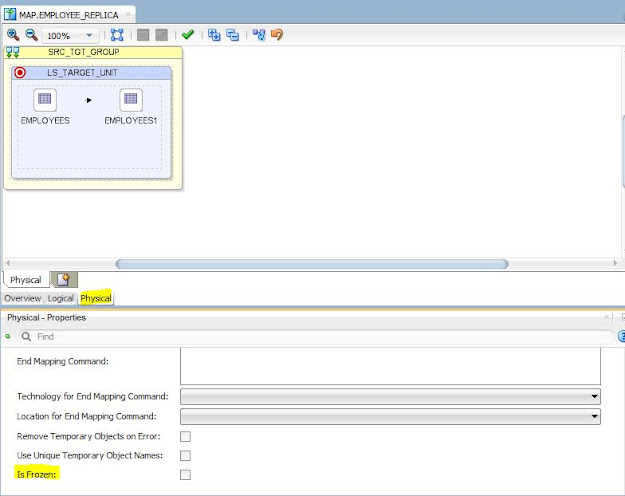

1. Go to Mapping Editor
2. Go to the Physical tab
3. select the Is Frozen check box of the Physical Mapping Design

Tip 3: Model that works with multiple underlying technologies

 Q: You need to create a Model that works with multiple underlying technologies. How must you proceed?

Ans: Create a new generic technology to support it.
